Antlia’s Air-Operated Double Diaphragm Pumps (AODD Pumps) are designed and customized for a wide range of applications, offering versatility in installation configurations to meet specific fluid transfer needs. Here are the main examples of installation:
Antlia AODD Pumps excel in handling viscous fluids, where the suction side of the pump is located below the fluid’s level, drawing from the bottom of the tank. To ensure safety, it is recommended to restrict the inlet fluid pressure to 0.5 bar for PTFE diaphragm pumps and 0.8 bar for Rubber diaphragm pumps. Installing a check valve between the pump’s suction side and the tank prevents liquid dispersion in case of diaphragm breakage.

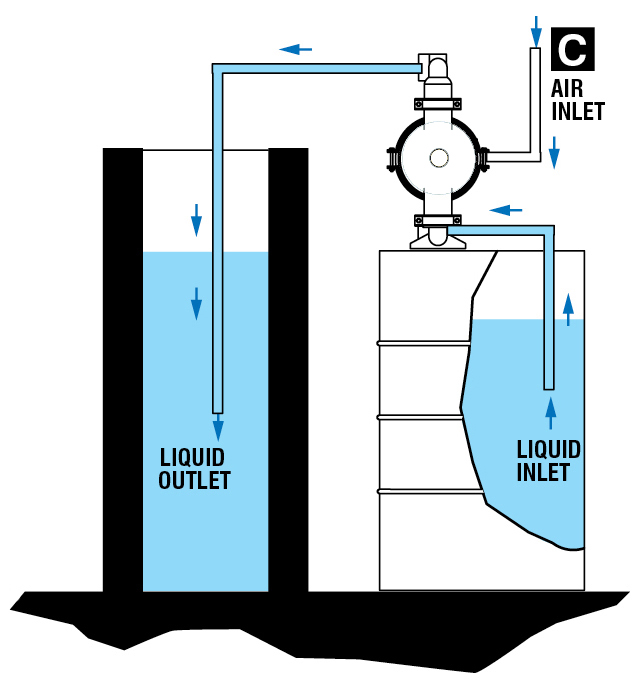

Antlia’s AODD Pumps are renowned for their self-priming ability, making this the standard application. These pumps efficiently empty drums and wells or handle situations where the suction side is above the liquid level in the tank. Understanding the pumping fluid’s specific gravity, viscosity, and plant conditions is essential for optimal self-priming performance, and our technical support is readily available for assistance.

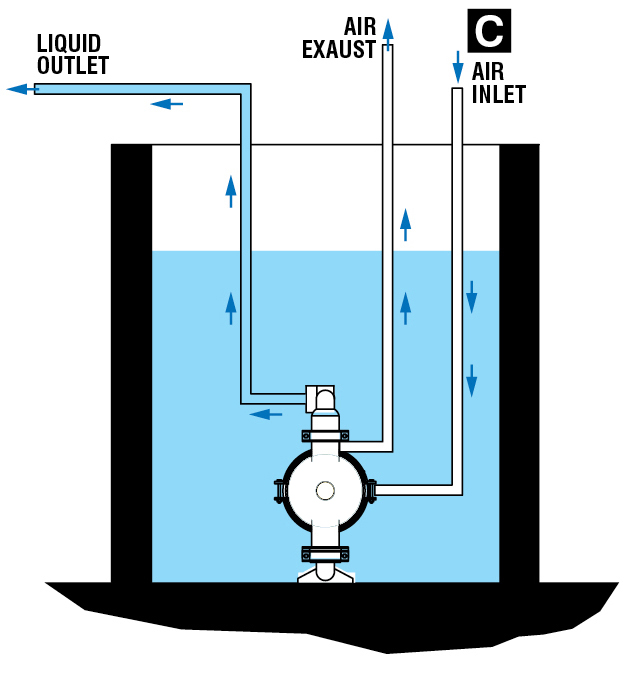

Antlia Pumps are designed for complete submersion, operating inside the tank and in direct contact with the pumping fluid. For reliable performance, all construction materials submerged in the liquid possess impeccable chemical resistance and compatibility. Additionally, installing an extension on the air exhaust connection, positioned above the fluid’s level, facilitates efficient air release and seamless pump operation.

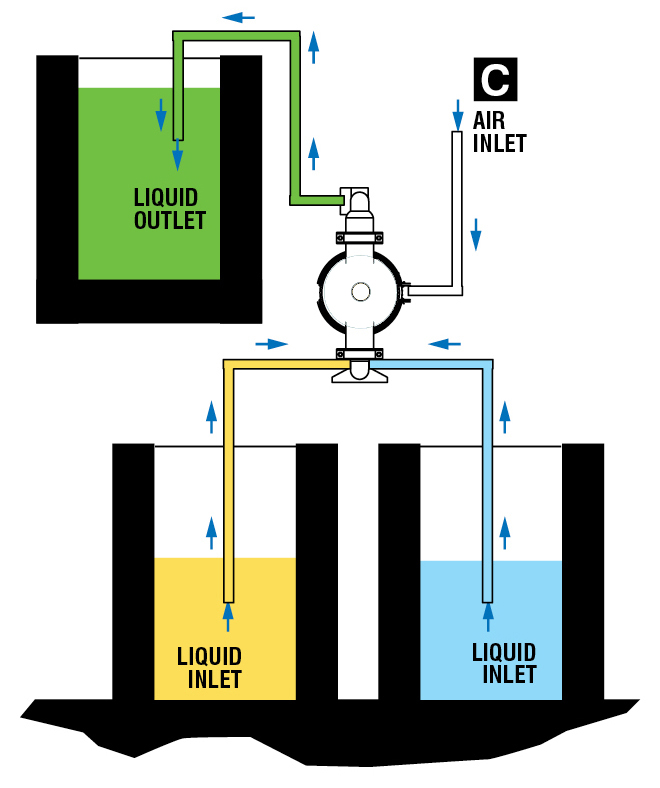

Upon request, Antlia Pumps can be customized with a double suction manifold. This special version is employed in applications requiring the mixing of two different liquids, all achievable with just one pump. For more information or quotations, feel free to contact us.

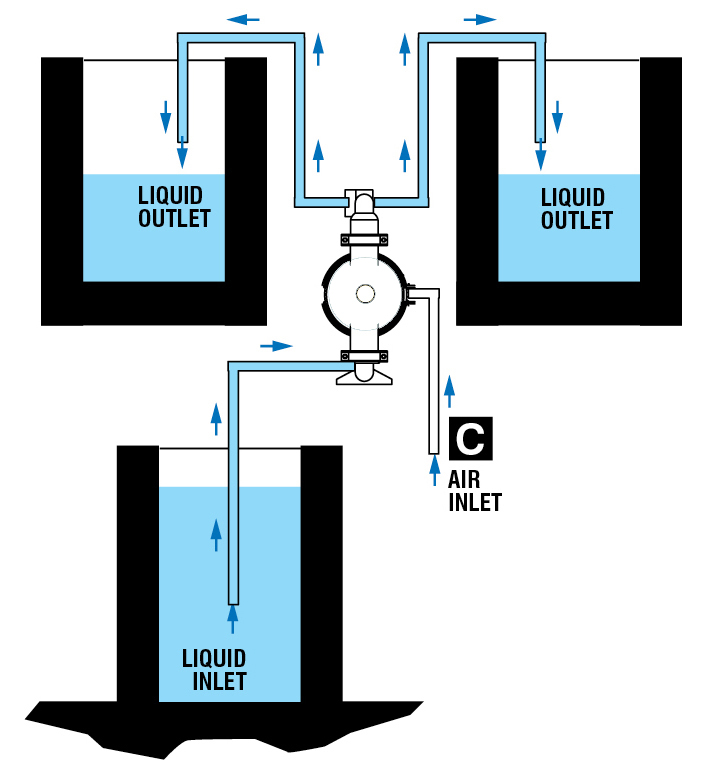

Another special model available upon request is the pump with a double delivery manifold. Suitable for applications requiring the delivery of the same product to two different parts of the plant, it provides efficient and convenient fluid transfer solutions.

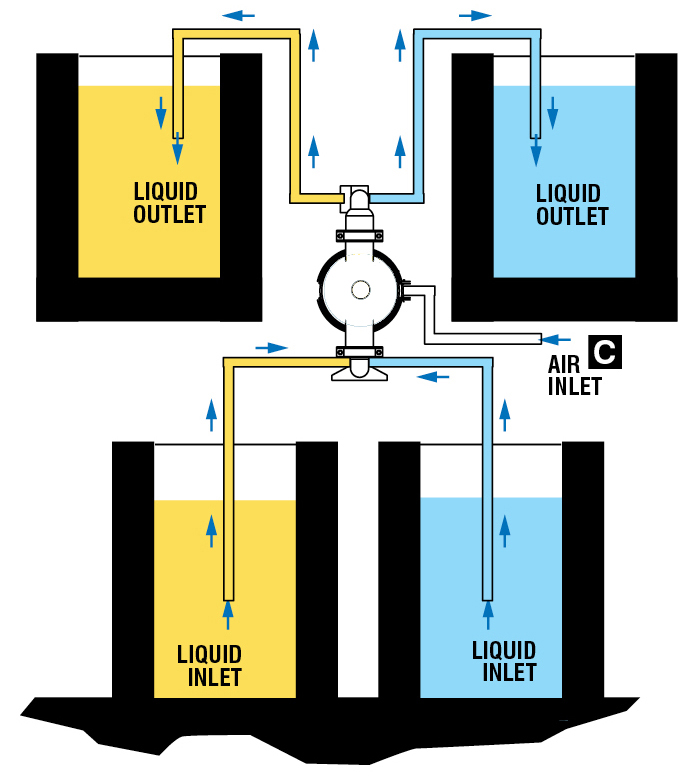

The pinnacle of Antlia’s special models, this pump combines both double suction and double discharge manifolds. Here, two entirely independent sides allow for the pumping of two different liquids without any contact between them. This innovative design enables the use of just one pump for enhanced efficiency. For inquiries or quotations, please contact us.
Antlia’s AODD Pumps offer a diverse array of installation options, making them highly versatile for fluid transfer applications in various industries. From positive and negative suction to submerged and custom configurations, these pumps can be tailored to suit specific needs.
With their robust construction, reliable performance, and dedicated technical support, Antlia Pumps stand as a dependable partner in meeting diverse fluid transfer challenges. Experience the efficiency and convenience of Antlia AODD Pumps for your fluid handling requirements.
For any information or assistance, don’t hesitate to reach out to us.
