Barrel pumps are widely used across Indian industries for transferring liquids from drums, barrels, and containers. They are especially useful in situations where fixed pumping systems are not required or where flexibility and safety are important.
From chemicals and oils to food-grade liquids and adhesives, barrel pumps provide a practical and controlled way to handle fluids directly from drums. However, not all barrel pumps work the same way. Each type is designed for specific fluids, operating conditions, and safety requirements.
This guide explains the main types of barrel pumps, how they work, and where they are typically used in real industrial environments.

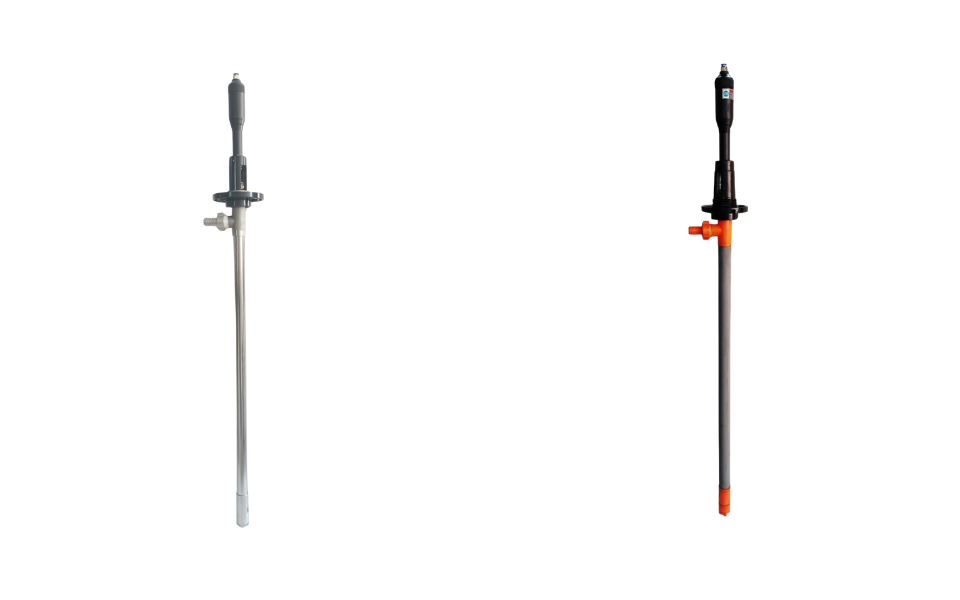

Pneumatic barrel pumps operate using compressed air and are commonly available as motorised pneumatic barrel pumps (PP & SS) and simple pneumatic barrel pumps (SS). These pumps are widely used where electrical power is restricted or where safety is a priority.
A pneumatic barrel pump is connected to an external air compressor that supplies pressurised air to an air motor inside the pump. The compressed air is converted into mechanical motion, which drives the pumping mechanism. This movement creates suction, drawing liquid from the drum through the pump tube and pushing it upward through a discharge hose into another container.
Pneumatic barrel pumps are typically manufactured using SS-316 stainless steel for corrosion resistance and mechanical strength, and polypropylene (PP) for chemical compatibility.
Pneumatic barrel pumps are safe for handling flammable and corrosive fluids because they do not use electricity. They reduce the risk of sparks and are suitable for continuous operation under varying process conditions.

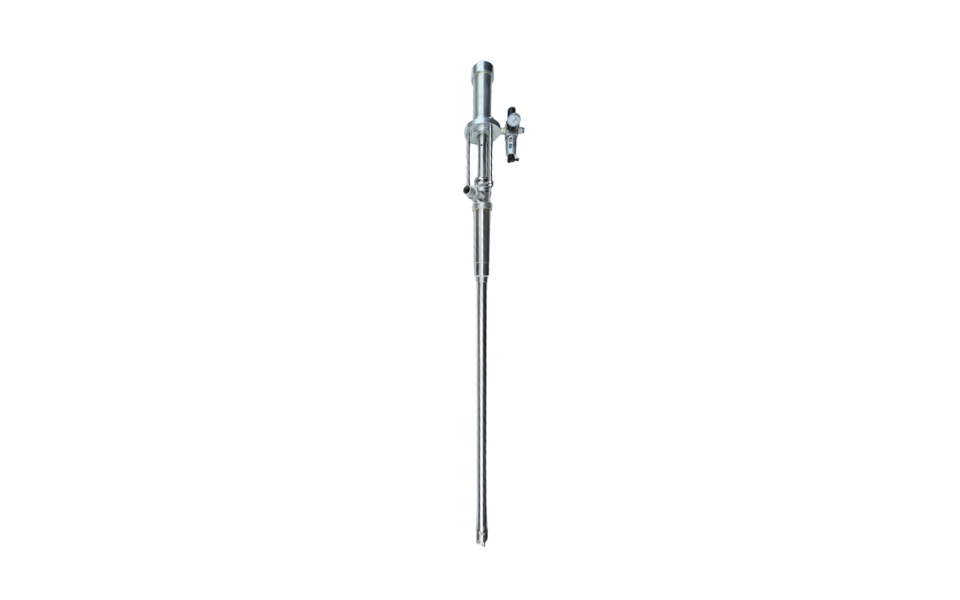

Air operated piston type barrel pumps are designed for applications that require controlled flow and higher discharge pressure, especially when handling thick or viscous liquids.
These pumps work on a reciprocating piston principle powered by compressed air. When air pressure in the range of 2.5–9 kg/cm² is applied, the piston moves up and down. The upward stroke creates suction that draws liquid into the pump, while the downward stroke discharges the liquid through the outlet. This continuous action provides a steady and controllable flow without the need for electricity.
Air operated piston type barrel pumps are generally manufactured in SS-316, making them suitable for corrosive, hazardous, and viscous liquids.
These pumps are ideal when consistent pressure and precise control are required. They are commonly used for thick fluids and demanding applications where accuracy and safety are critical.
.png)

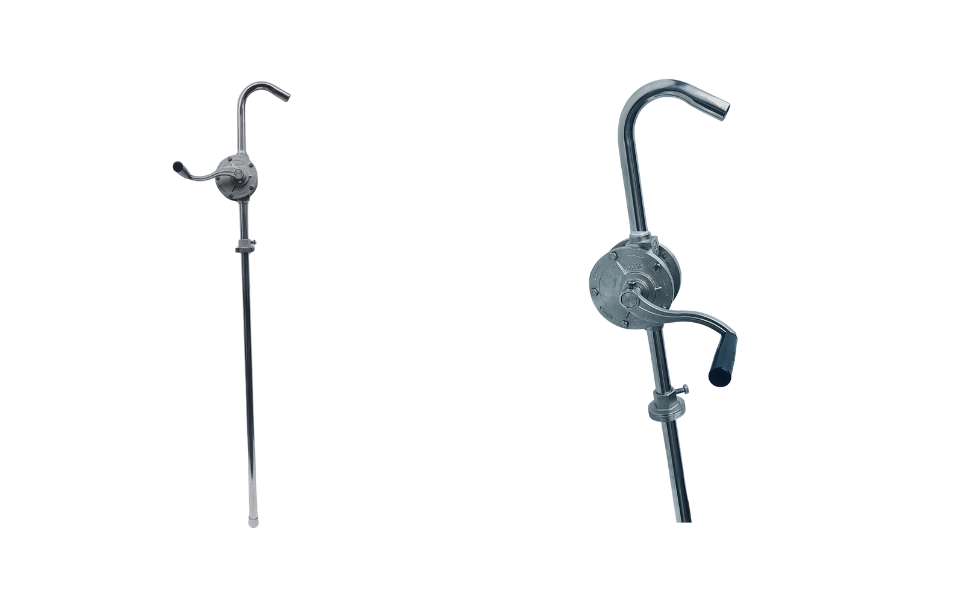

Rotary hand barrel pumps are manually operated pumps used for basic and low-volume fluid transfer. They do not require electricity or compressed air.
Rotary hand barrel pumps work on a positive displacement principle. When the handle is turned, an internal mechanism such as a gear, vane, or rotor rotates inside the pump chamber. This rotation creates a vacuum that draws liquid from the barrel. The trapped liquid is then pushed toward the discharge outlet, ensuring continuous flow as long as the handle is operated.
Rotary hand barrel pumps are available in polypropylene (PP) and stainless steel (SS) constructions.
These pumps are simple, cost-effective, and easy to use. They are suitable for applications where automation is not required and portability is important.
.png)

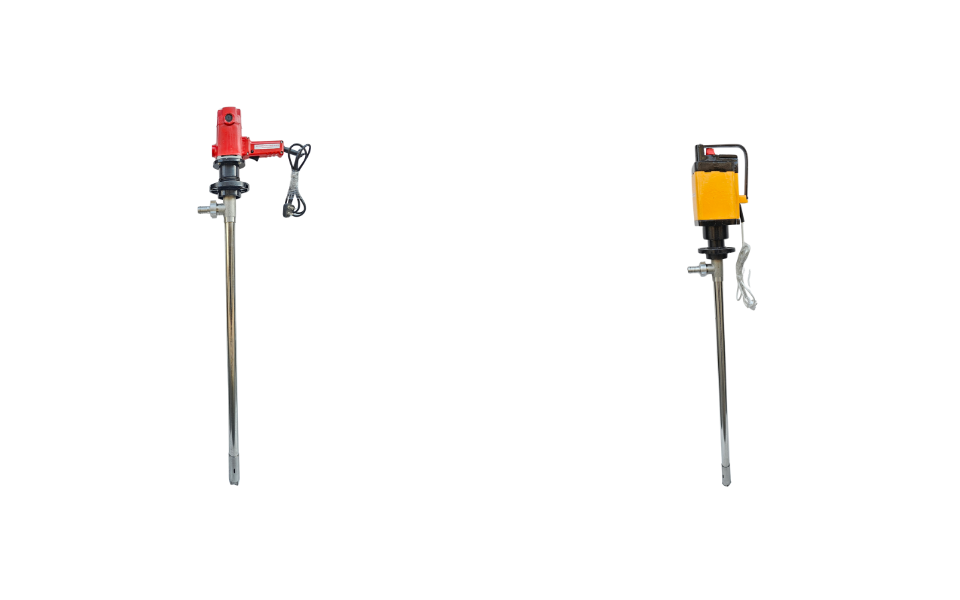

Electric barrel pumps are powered by electric motors and are commonly used for clean or low-viscosity fluids in controlled environments.
Electric barrel pumps use an AC or DC motor to drive an impeller or rotor mounted inside a pump tube. When the motor is switched on, it creates suction that draws liquid up through the tube and discharges it through a hose or nozzle. Many electric barrel pumps include flow control valves, and some models feature automatic shut-off to prevent overflow.
Electric barrel pumps are manufactured using SS-316 stainless steel for corrosion resistance and polypropylene (PP) for chemical compatibility.
Electric barrel pumps offer faster transfer rates and ease of operation. They are suitable for applications where power supply is stable and the fluids being handled are non-hazardous.
| Barrel Pump Type | Power Source | Materials | Suitable Fluids | Typical Applications |
|---|---|---|---|---|
| Pneumatic Barrel Pump (Motorised / Simple) |
Compressed Air | PP / SS | Corrosive, flammable, low to medium viscosity liquids | Chemical plants, paints, solvents, hazardous areas |
| Air Operated Piston Type Barrel Pump | Compressed Air | SS | High-viscosity, hazardous, corrosive liquids | Adhesives, resins, oils, dosing applications |
| Rotary Hand Barrel Pump | Manual Operation | PP / SS | Oils, fuels, non-corrosive liquids | Workshops, maintenance, remote locations |
| Electric Barrel Pump | Electric Motor (AC/DC) | PP / SS | Clean, low-viscosity, flammable & non-flammable liquids | Food, FMCG, laboratories, controlled environments |
Barrel pumps play a critical role in safe and efficient fluid handling across industries. Whether it is a pneumatic barrel pump for chemicals, an air operated piston type barrel pump for viscous fluids, a rotary hand barrel pump for basic transfer, or an electric barrel pump for clean liquids, each type serves a specific purpose.
Selecting the correct barrel pump ensures smoother operations, reduced downtime, and safer handling of industrial liquids—especially in demanding Indian plant conditions..
